Java Heap Dump Analysis using Eclipse Memory Analyzer (MAT)

Posted by Mohaideen Jamil in Core Java, Eclipse, Java, JVM, Software | 1 comment


In this article we will learn what a Java heap dump is and how to analyze a heap dumps generated through OutOfMemoryError using Memory Analyzer in Eclipse.


What is a heap dump?


A heap dump is a snapshot of memory at a given point in time. It contains information on the Java objects and classes in memory at the time the snapshot was taken.


Why would we want to read heap dump?


If your Java application crashes with an OutOfMemoryError it is possible to automatically get a heap dump to analyze. This view into the memory profile of the application at the time it crashed can help us to figure out what caused the error. This can help decide what to optimize in our code.


How to get a heap dump?


To generate heap dump we have to execute a JVM with the following parameters in eclipse


-XX:+HeapDumpOnOutOfMemoryError writes heap dump on first  OutOfMemoryError

Here the heap dump will be generated in the “current directory” of the JVM by default. It can be explicitly redirected with


-XX:HeapDumpPath= for example -XX: HeapDumpPath=/disk/myFolder.

How to read a heap dump?


Heap dump will be in binary format so you don’t read the plain file. Instead use a tool like Memory Analyzer Tool.
Download MAT plugin from this location, and install it in your eclipse.


OOM Java program

Here the Java program below is used to trigger an OutOfMemoryError. This program is basically creating multiple String instances within a List data structure until the Java Heap depletion.


package com.simplecode.heap;

import java.util.ArrayList;
import java.util.List;

public class OOMHeapGenerator
{
public static void main(String[] args)
{
	System.out.println("JVM OutOfMemoryError Simulator");
	List<String> leakingVariable = new ArrayList<String>();

	try
	{
		while (1 < 2)
		{
		leakingVariable.add("OutOfMemoryError");
		}
	}
	catch (Throwable exp)
	{
	     if (exp instanceof java.lang.OutOfMemoryError)
	     {
	     System.out.println("OutOfMemoryError triggered! " + "[" + exp + "]");
	     }
	     else
	     {
	     System.out.println("Other Exception! " + "[" + exp + "]");
	     }
	}
	System.out.println("Simulator done!");
}
}

On running this program, when the JVM ran out of memory it created a heap dump file java_ pid1244.hprof.



Press F5 in your project folder, so now the generated heap dump file will appear in eclipse.

Load Heap Dump


Just double click on the heap dump file and select the Leak Suspects Report, and then this file will be loaded into MAT.




On clicking finish the following Screen is obtained




Analyze Heap Dump


Clicking on the “See stacktrace” link will give you the exact line of code that was building up the huge List causing the application to crash.

Now we know where to go look in at the code to fix this bug. Hence by analysing the Heap Dump using the MAT we could easily identify our primary leaking Java class and data structure.

Solution for “Could not create the Java Virtual Machine” issue

Posted by Mohaideen Jamil in Eclipse, Java | 2 comments


If you get the below error message while executing java program


Error:Could not create the Java Virtual Machine.
Error:A fatal exception has occurres.Program will exit.


To resolve this issue, following steps are needed to be followed (on Windows XP, Windows 7, Windows 8):

• Right Click on My Computer Icon and click on Properties
• Click on Advanced Systems Settings
• Then Environment Variables
• Under System Variables, click New
• In which give Variable Name as: _JAVA_OPTIONS
• Variable Value: -Xmx1024m
• Click OK

That’s it, now your Java program should execute properly.


Note:
Heap size allocated by the JVM by default can be Increased/Modified by using Java -Xmx/s command line options.

Where
-Xms<size>        set initial Java heap size
-Xmx<size>        set maximum Java heap size

Click here to know about getting JVM heap size, used memory, total memory using Java Runtime programatically.


How to increase JVM heap size in Eclipse

Posted by Mohaideen Jamil in Eclipse, Java, Jboss, Tomcat | 1 comment


To avoid getting java.lang.OutOfMemoryErrors, while running web application, we should increase heap size allocated by the JVM by using command line options.


-Xms<size>        set initial Java heap size
-Xmx<size>        set maximum Java heap size
-Xss<size>        set java thread stack size

To do this, follow these steps:

1. Open the Server Configuration in Eclipse by double-clicking on the Server instance.




2. Click on “Open launch configuration” link



3. Click on the Arguments tab and add the following command at the end of VM arguments: -Xms128m –Xmx1024m.




These values may vary, depending on requirement/available memory


If you are not using any server, you can type the following on the command line before you run your program:

java -Xms64m -Xmx1024m MyProgram

Note:

• Do not set -Xmx to too small value
• Set -Xms to a small value

Setting -Xmx to small value mostly leads to OutOfMemoryErrors, because this is the maximum amount of memory you are allocating for Java and it cannot utilize memory beyond the set value.

Also If you set -Xms to higher value you might run out of memory. So try to keep it to a small value like -Xms16m.


Eclipse Shortcuts for fast coding

Posted by Mohaideen Jamil in Eclipse | 1 comment





List of some Shortcuts for fast coding. Traverse below and improve your coding speed by utilizing Eclipse Shortcuts.

Download It – eclipse.pdf

File navigation  Short cuts


Java Editing Short cuts



Editing Short cuts




Debug and  Run Eclipse short cuts



Some Extra Short cuts



String to StringBuffer /StringBuilder

In order to change the concatenation from String to StringBuffer /StringBuilder, move the cursor to the String variable, and press Ctrl +1, and select ‘Use StringBuffer//StringBuilder for string concatenation’
For eg, String s = “a”+”b”+”c”+”d”;
will change to StringBuffer sB = new StringBuffer();
sB.append(“a”);
sB.append(“b”);
sB.append(“c”);
sB.append(“d”);
String s = sB.toString();


How to create a Servlet with Eclipse and Tomcat server

Posted by Mohaideen Jamil in Eclipse, Servlet

Environment Used

• JDK 7 (Java SE 7)
• Eclipse JUNO IDE
• Apache Tomcat 7.x
• Servlet 3

Setting up development environment


To install Eclipse IDE and to configure Apache Tomcat read this page

Creating Dynamic Web Project

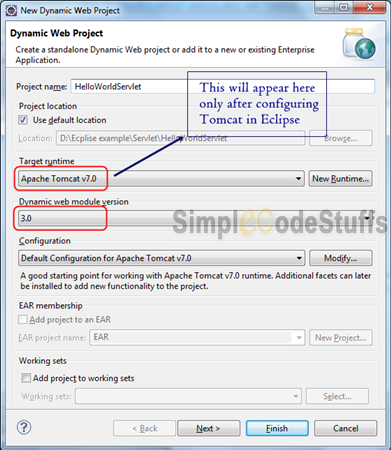

Start your Eclipse and then go with File > New > Dynamic Web Project and enter project name as HelloWorldServlet and set rest of the options as given in the following screen:



You will see the Dynamic web project in the ‘Project Explorer’ view.


Creating Servlet


Right click on src or Project -> New -> Servlet





Thats all on how to create a servlet in eclipse, in our next article we shall learn to implement Hello world example using Servlet.


How to install Eclipse IDE and configure apache tomcat

Posted by Mohaideen Jamil in Eclipse, Tomcat

Downloading Eclipse


If you need to install Eclipse, you can download it from this location: http://www.eclipse.org/downloads/


Installing Eclipse


Once downloaded extract the files in the desired directory. When you extract the file, it creates a sub directory called “eclipse” in which you can find the eclipse.exe application. You can double click on this to launch Eclipse.




Setup Apache Tomcat :


You can download the latest version of Tomcat from http://tomcat.apache.org/. Once you downloaded the installation, unpack the file into a desired directory. For example in D:\Study\Java\apache-tomcat-7.0.23

Now open Eclipse IDE and make sure you are in Java EE perspective; Now right click -> New -> Server in “Servers” area.



Now you could see list of servers that can be configured in Eclipse. You will find Tomcat v7.0 Server under “Apache” folder as shown below.



Click next, and fill in your Tomcat installation directory:



Click Finish, now the configured Apache Tomcat Server will be displayed in the “Servers” view as shown below.


Start Server


Now start and stop it to ensure that it is working properly.



That’s all on how setup eclipse IDE and configuring apache tomcat.
